Products : Vials : Headspace Vials
Headspace Vials
Worldwide Glass Resources Headspace Vials
- Manufactured from Type 1 Borosilicate glass
- Available in 6ml, 9ml, 10ml, 12ml, 20ml and 27ml
- Clear or Amber
- Finishes available in 20mm standard crimp seal or beveled finish and 18mm screw thread
- Radius (Rounded) bottom or flat bottom styles

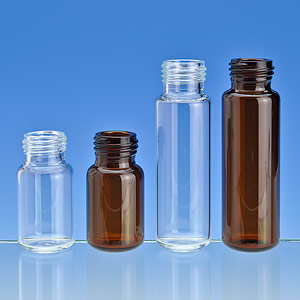

18 MM SCREW THREAD HEADSPACE VIALS
18 mm Screw Thread Headspace Vials use a 1.25 mm average wall thickness, which offers more reliability when internal pressures build. They are inspected using the latest camera gauging equipment to ensure the tightest dimensional tolerances are maintained during the manufacturing process. Our Headspace Vials meet or exceed OEM standards.
WWGR Part# | Description | Size | Finish | Bottom Style | Pack | Case |
0010785 | 10.0 mL Clear Vial | 22.6x46 | 18 mm S/T Screw Thread | Radius Bottom (CTC) | 100 | 1000 |
0010786 | 10.0 mL Amber Vial | 22.6x46 | 18 mm S/T Screw Thread | Radius Bottom (CTC) | 100 | 1000 |
0010787 | 20.0 mL Clear Vial | 22.6x75.5 | 18 mm S/T Screw Thread | Radius Bottom (CTC) | 100 | 1000 |
0010788 | 20.0 mL Amber Vial | 22.6x75.5 | 18 mm S/T Screw Thread | Radius Bottom (CTC) | 100 | 1000 |
18 MM MAGNETIC SCREW THREAD CLOSURES
18 mm precision thread, lined, magnetic closures provide a secure seal.
WWGR Part# | Description | Septa | Material | Pack | Case |
0015190 | 18 mm Screw Thread | Red PTFE/White Silicone, 1.9 mm | Steel | 100 | 1000 |
0015191 | 18 mm Screw Thread | Gray PTFE/Red Butyl, 1.6 mm | Steel | 100 | 1000 |
0015193 | 18 mm Screw Thread | White PTFE/Trans Blue Silicone, 1.8 mm | Steel | 100 | 1000 |
0015194 | 18 mm Screw Thread | Blue PTFE/White Silicone, 1.5 mm | Steel | 100 | 1000 |
18 MM MAGNETIC SCREW THREAD CLOSURES (SPME)
WWGR Part# | Description | Septa | Material | Pack | Case |
0015195 | 18 mm Screw Thread | Blue PTFE/White Silicone (SPME) | Steel | 100 | 1000 |
20 MM CRIMP HEADSPACE VIALS
Manufactured from low extractable Type I borosilicate glass. Quality controlled using the latest camera and length gauge systems to ensure compatibility with your autosampler. Our Headspace Vials meet or exceed OEM standards.
WWGR Part# | Description | Size | Finish | Bottom Style | Pack | Case |
0010732 | 20.0 mL Clear Vial | 22.6x75.5 | 20 mm Crimp Standard Top/Long Neck | Radius Bottom (CTC) | 100 | 1000 |
0010735 | 20.0 mL Amber Vial | 22.6x75.5 | 20 mm Crimp Standard Top/Long Neck | Radius Bottom (CTC) | 100 | 1000 |
0010744 | 9.0 mL Clear Vial | 18.5x50 | 20 mm Crimp Tapered Top | Radius Bottom (Tekmar) | 100 | 1000 |
0010745 | 12.0 mL Clear Vial | 18.5x65 | 20 mm Crimp Tapered Top | Radius Bottom (Tekmar) | 100 | 1000 |
0010746 | 20.0 mL Clear Vial | 23x75 | 20 mm Crimp Tapered Top | Radius Bottom (Tekmar) | 100 | 1000 |
0010750 | 6.0 mL Clear Vial | 22x38 | 20 mm Crimp Tapered Top | Radius Bottom | 100 | 1000 |
0010751 | 10.0 mL Clear Vial | 22.6x46 | 20 mm Crimp Tapered Top | Radius Bottom | 100 | 1000 |
0010752 | 20.0 mL Clear Vial | 22.6x75 | 20 mm Crimp Tapered Top | Radius Bottom | 100 | 1000 |
0010753 | 6.0 mL Amber Vial | 22x38 | 20 mm Crimp Tapered Top | Radius Bottom | 100 | 1000 |
0010754 | 10.0 mL Amber Vial | 22.6x46 | 20 mm Crimp Tapered Top | Radius Bottom | 100 | 1000 |
0010755 | 20.0 mL Amber Vial | 22.6x75 | 20 mm Crimp Tapered Top | Radius Bottom | 100 | 1000 |
0010760 | 6.0 mL Clear Vial | 22x38 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010761 | 10.0 mL Clear Vial | 22.6x46 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010762 | 20.0 mL Clear Vial | 22.6x75 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010763 | 27.0 mL Clear Vial | 30x60 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010764 | 6.0 mL Amber Vial | 22x38 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010765 | 10.0 mL Amber Vial | 22.6x46 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010766 | 20.0 mL Amber Vial | 22.6x75 | 20 mm Crimp Tapered Top | Flat Bottom | 100 | 1000 |
0010774 | 6.0 mL Clear Vial | 22x38 | 20 mm Crimp Standard Top | Flat Bottom | 100 | 1000 |
0010775 | 10.0 mL Clear Vial | 22.6x46 | 20 mm Crimp Standard Top | Flat Bottom | 100 | 1000 |
0010776 | 20.0 mL Clear Vial | 22.6x75 | 20 mm Crimp Standard Top | Flat Bottom | 100 | 1000 |
0010777 | 6.0 mL Amber Vial | 22.6x75 | 20 mm Crimp Standard Top | Flat Bottom | 100 | 1000 |
0010778 | 10.0 mL Amber Vial | 22.6x46 | 20 mm Crimp Standard Top | Flat Bottom | 100 | 1000 |
0010779 | 20.0 mL Amber Vial | 22.6x75 | 20 mm Crimp Standard Top | Flat Bottom | 100 | 1000 |
20 MM ALUMINUM SEALS
Seals for Headspace Vials are available in aluminum, magnetic and pressure release. Pressure release seals offer a safety feature where the scored aluminum seal will open if the internal pressure reaches 3.0 ± 0.5 bar (1 bar equals approximately 14.5 psi).
WWGR Part# | Description | Septa | Material | Pack | Case |
0015301 | 20 mm Crimp, Standard | PTFE/Clear Silicone, 2.5 mm | Alum | 100 | 1000 |
0015302 | 20 mm Crimp, Pressure Release | PTFE/Clear Silicone, 2.5 mm | Alum | 100 | 1000 |
0015303 | 20 mm Crimp, Steel/Magnetic | PTFE/Clear Silicone, 8mm Opening, 2.5 mm | Steel | 100 | 1000 |
0015451 | 20 mm Crimp, Standard | PTFE/Gray Butyl, 3.0 mm | Alum | 100 | 1000 |
0015452 | 20 mm Crimp, Pressure Release | PTFE/Gray Butyl, 3.0 mm | Alum | 100 | 1000 |
0015453 | 20 mm Crimp, Steel/Magnetic | PTFE/Gray Butyl, 8 mm Opening, 3.0 mm | Steel | 100 | 1000 |
0015501 | 20 mm Crimp, Standard | PTFE/Molded Gray Butyl, 3.0 mm | Alum | 100 | 1000 |
0015502 | 20 mm Crimp, Pressure Release | PTFE/Molded Gray Butyl, 3.0 mm | Alum | 100 | 1000 |
0015503 | 20 mm Crimp, Steel/Magnetic | PTFE/Molded Gray Butyl, 8 mm Opening, 3.0 mm | Steel | 100 | 1000 |
0015609 | 20 mm Crimp, Steel/Magnetic | Blue PTFE/White Silicone (SPME) | Steel | 100 | 1000 |
20 MM ALUMINUM SEALS (SPME)
WWGR Part# | Description | Septa | Material | Pack | Case |
0015609 | 20 mm Crimp, Steel/Magnetic | Blue PTFE/White Silicone (SPME) | Steel | 100 | 1000 |
